ویبرومتر و دیتاکالکتور Extech SDL800

  • Acceleration: 656ft/s², 200m/s², 20.39g
  • Velocity: 7.87in/s, 200mm/s, 19.99cm/s
  • Displacement: 0.078in, 2mm (peak-to-peak)
  • Resolution: 1ft/s², 0.1m/s², 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s;
    0.001in, 0.001mm
  • Basic Accuracy: ±(5%+2 digits)
  • Memory: 20,000K data records using 2G SD card
  • Dimensions: 182 x 73 x 47.5mm
  • Weight: 599g

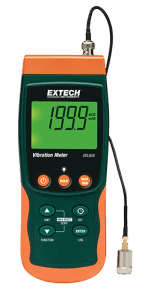

The Extech SDL800 Vibration Meter / Datalogger is the perfect instrument for carrying out vibration measurement at a distance.

Coming with a remote sensor and magnetic adaptor as standard, the Extech SDL800 allows measurement of overall vibration with a variety of applications, including motors, fans, pumps and more. With the sensor’s cable reaching 1.2m, the SDL800 allows the user to stay at a safe distance when taking measurements and the backlit LCD screen makes reading results easy in a range of environments.

Capable of calculating acceleration and velocity with high levels of accuracy, the SDL800 also offers datalogging functionality, allowing for repeat testing over time. Storing up to 99 readings on the meter itself, the Extech SDL800 can also store up to 20M readings directly onto the included SD card and boasts PC connectivity to make life easier. It also allows the user to configure the sampling rate between 1 and 3600 seconds, meaning you have full control of your measurements.

With captured measurements being date/time stamped and saved to an excel file for easy organisation, the Extech SDL800 is the ideal vibration meter/datalogger for any job, without the need for additional software.

Features:

Remote vibration sensor with magnetic adapter on 47.2″(1.2m) cable

Wide frequency range of 10Hz to 1kHz

Basic accuracy of ±(۵% + ۲ digits); Meets ISO2954

RMS, Peak Value or Max Hold measurement modes

Adjustable data sampling rate

Offset adjustment used for zero function to make relative measurements

Large backlit LCD

Stores 99 readings manually and 20M readings via 2G SD card

Record/Recall MIN, MAX, Data Hold and Auto power off

Built-in PC interface

Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case

SDL800data(1) : کاتالوگ محصول
